All-weather enclosures perfect for:
-
Telecommunications
-
Solar Hybrid Power Systems
-
Uninterruptible Power System
100 series - Designed for:
-
- Perkins 402D-05, 403D-07, 403D-11
- Yanmar 2TNV70, 3TNV70, 3TNV76
- Isuzu 3CB1, 3CA1
- Daihatsu 950P
- Kubota 972
101 series - Designed for:
-
- Perkins 403D-15
- Yanmar 3TNV88
- Ford TSG415
- Toyota K1S
Description
In foul weather a generator is needed the most; utility power can be interrupted or the solar and wind power can diminish in capacity. This is the time when telecommunications are needed the most to support emergency services and keep families in contact with each other. Polar’s unique All Weather Enclosure is designed to keep the generator operational in high winds, rain, snow, and extreme temperatures.
Screens and baffles are in place to keep the weather elements out, along with rodents and other animals, who can interfere with the operation of the generator.
Polar’s All Weather Enclosure keeps the generator noise to a minimum. The noise level is dependent on the engine and power level selected. Using our electric radiator, the typical noise level for LPG and natural gas engines is 63 to 68 dBa and for diesel is 65 to 70 dBa, at 7 meters. (Please note that our sets can be as quite as other companies claiming 55 to 60 dBa, as most manufactures tend to exaggerate the noise performance of their generator.)

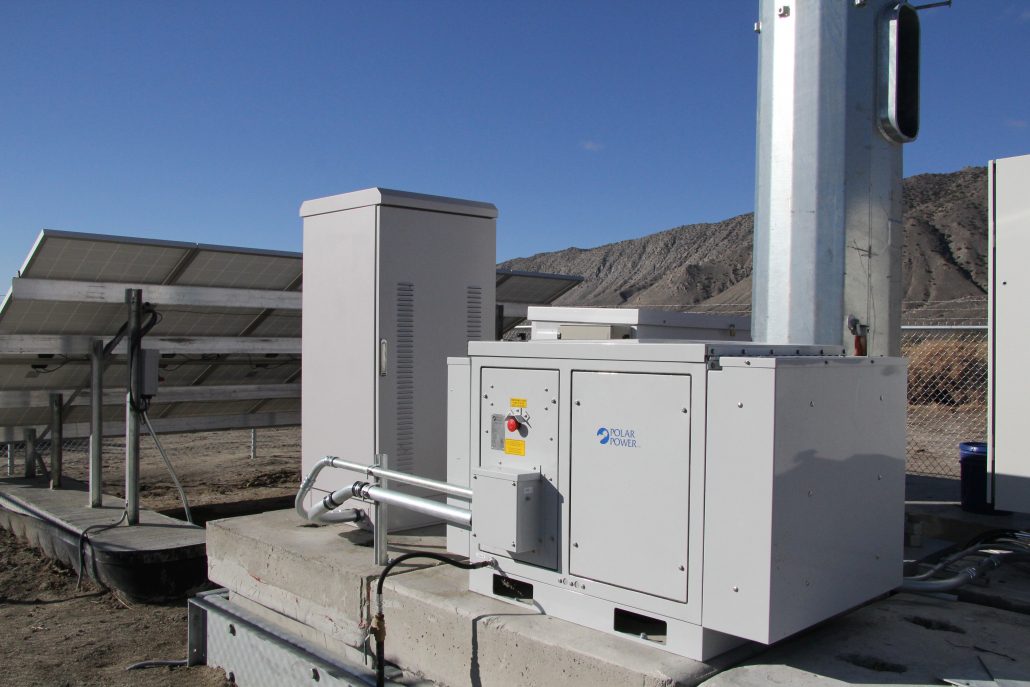

101 series diesel
100 series LPG
Features
All aluminum construction for corrosion resistance and long service life. Polar enclosures are made with thick aluminum sheets of 2.3 mm (0.090”) for strength.
Polar’s light weight enclosure facilitates transportation to the site via small vehicle, helicopter, or multi-person carry.
The aluminum enclosure accepts Polar’s electric radiator or the engine belt driven fan assembly. The electric radiator reduces fuel consumption by up to 15% and noise by up to 30%.
Forklift slots serve as helicopter/crane lifting points.
The enclosure design is designed to retain spilled oil, fuel, and coolant as required at certain installation sites.
The fuel tank is optional to our All Weather Enclosure. A 200 liter fuel tank can mounted under the enclosure. Customers have installed on site fuel tanks ranging from 20 to 1,000 gallons according to their site refueling requirements. Certain installations even prefer that the fuel tank is remote to the enclosure.
Oil drain is accessible from the outside of the enclosure depending on engine style.
The Power Terminal is accessible through the external junction box.
Fuel connections are accessible through standard ¼” NPT fittings.
Dual Access: Operators can gain acces to the DC generator either through the bolt-on side panels or the hinged top.
