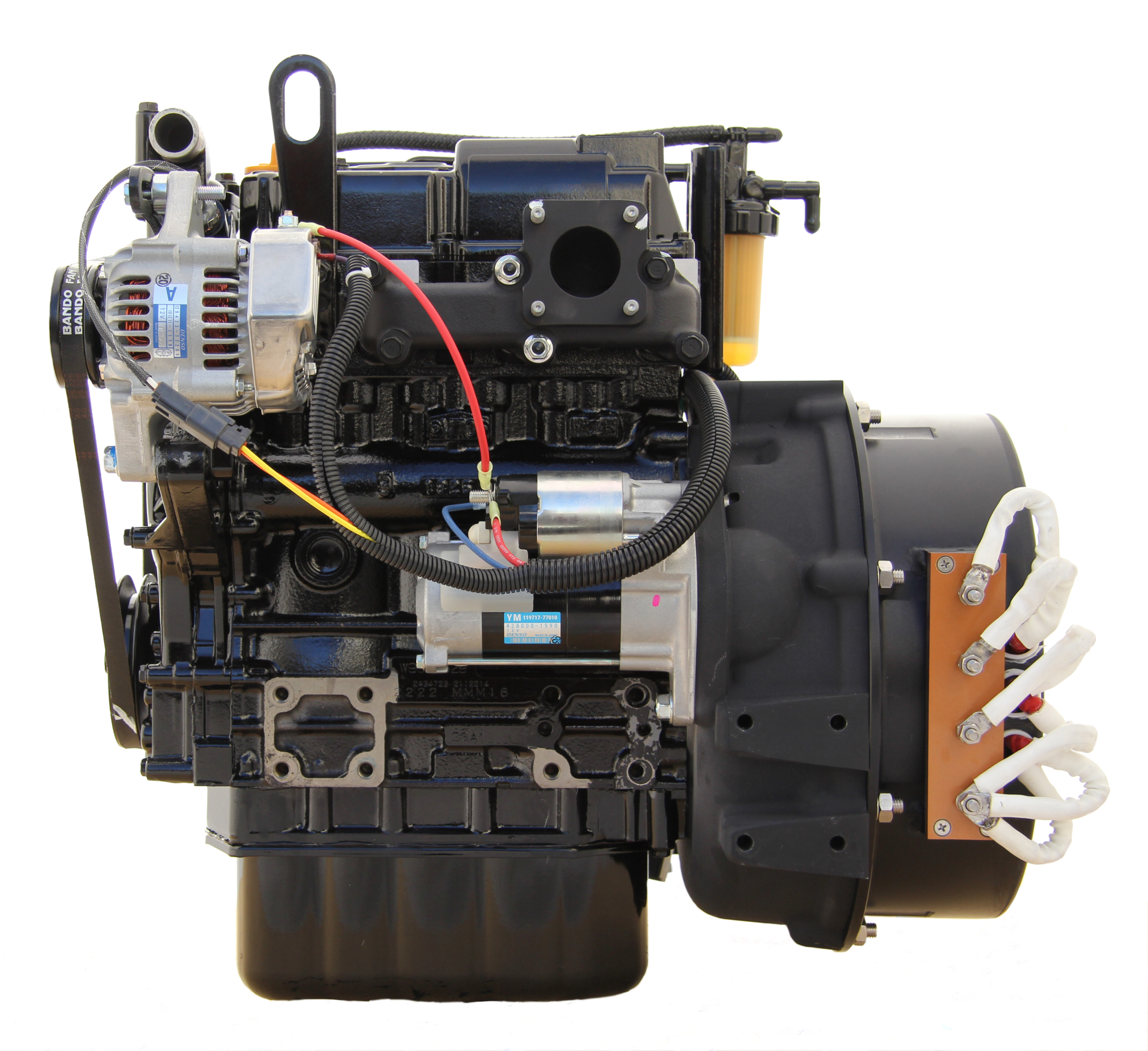

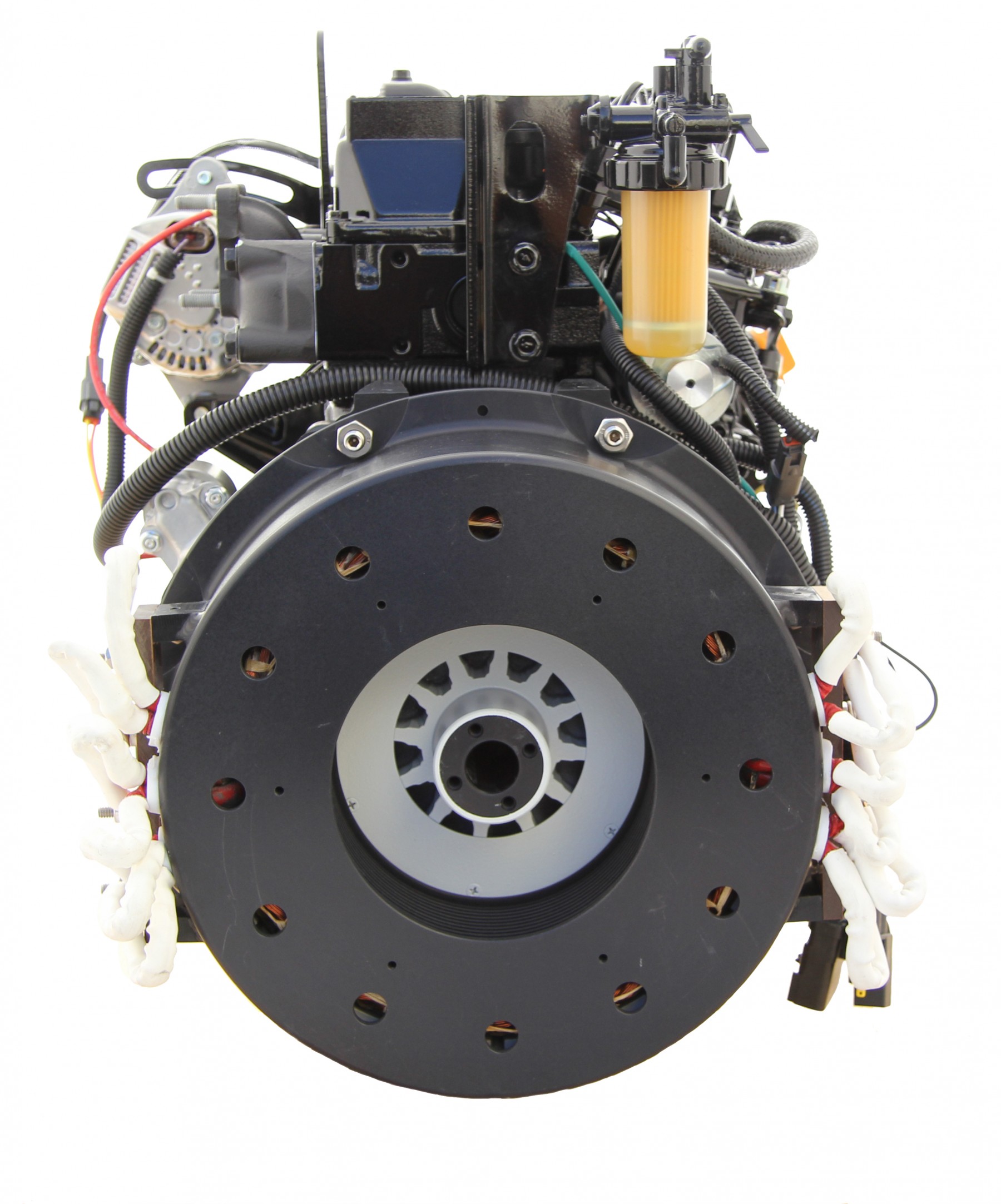

8220I-3CA1

10 kW Diesel DC Generator

The Most Efficient Means to Charge Batteries and Power Loads using Diesel
Fully Automatic Battery Charging Options

Features

  • Maximum continuous output is 10 kW at 2600 RPM
  • Available in all voltages from 24 to 500 Vdc
  • Variable speed with 500 RPM span – full load to no load
  • Lower engine speed options available
  • 3 cylinder diesel, quiet and with very low vibration
  • Engine Operational Life: 10,000 to 16,000 hours
  • Temperature compensated battery charging
  • Oil changes at 250 hours with 500 hour option
  • Very light weight
  • Alternator exceeding 85% efficiency
