8080Y-2TNV70

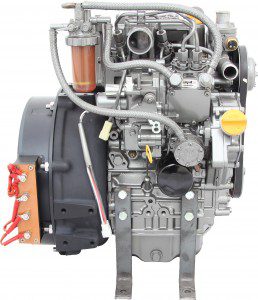

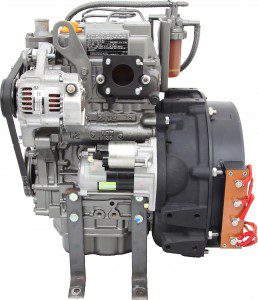

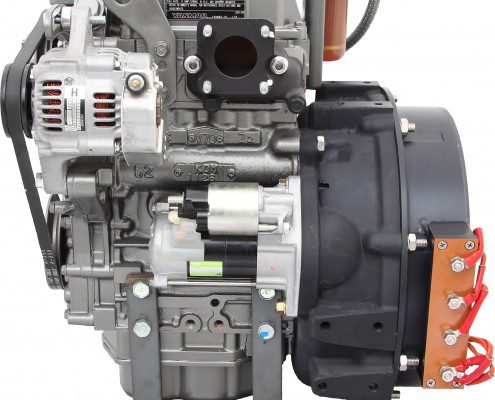

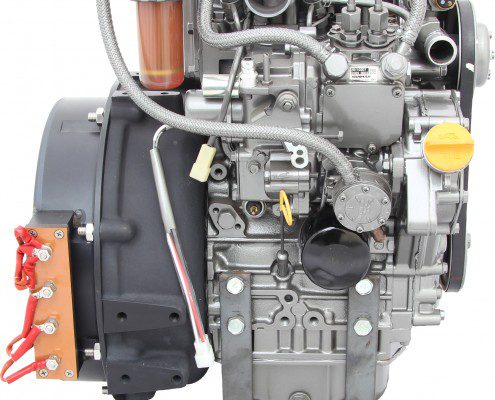

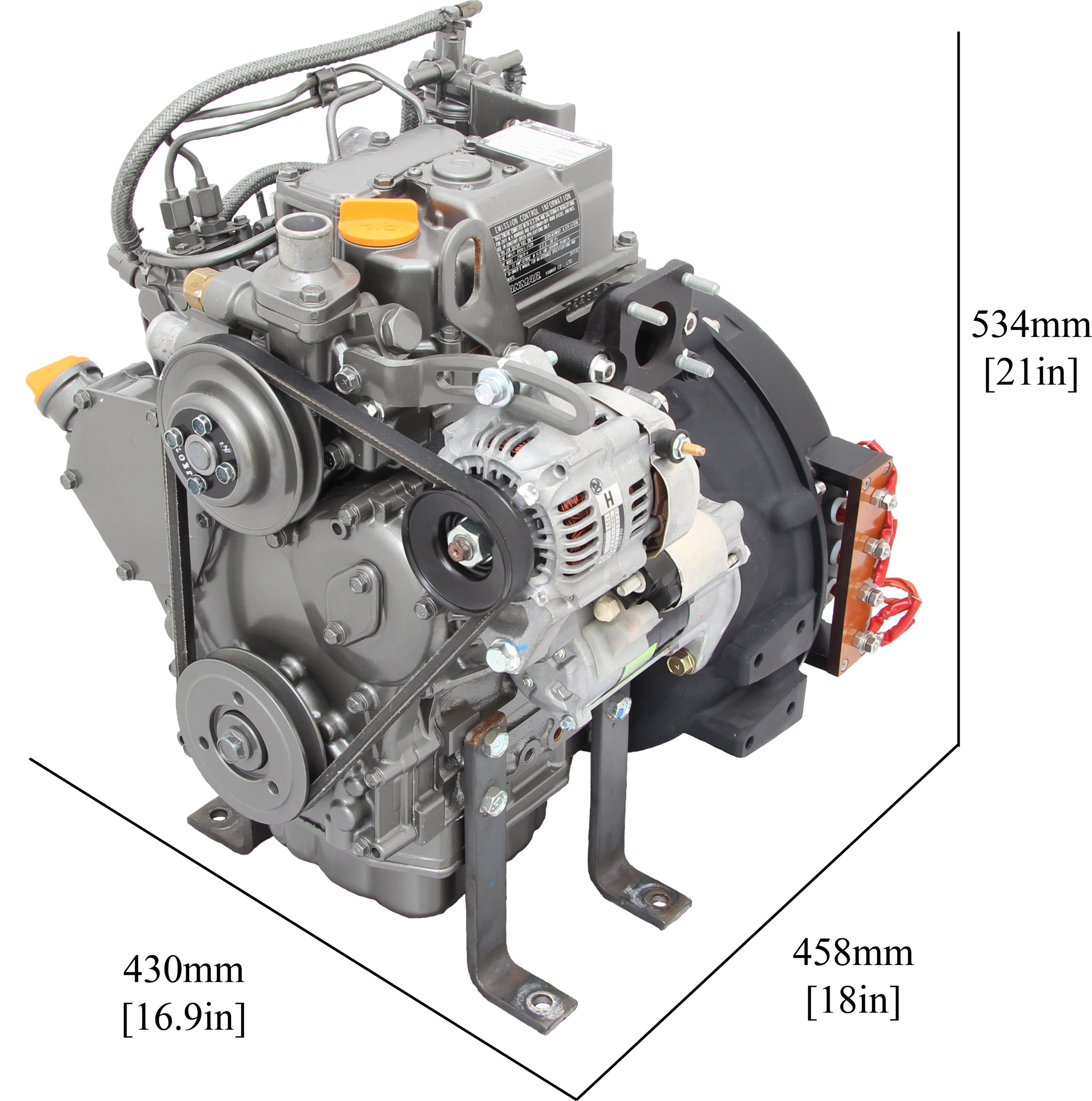

6 kW Diesel DC Generator

The Most Efficient Means to Charge Batteries and Power Loads using Diesel
Fully Automatic Battery Charging Options

Features

  • Maximum Continuous Output: 6 kW at 2900 RPM
  • 100 amps at 54 Vdc (200 amps at 28 Vdc)
  • Variable speed with 500 RPM span – full load to no load
  • Lower engine speed options available
  • 2 cylinder diesel, water cooled
  • Engine Operational Life: 8,000 to 12,000 hours
  • Temperature compensated battery charging
  • Oil changes at 500 hours with 1,000 hour maintenance option
  • Available with electric water pump in a beltless configuration
  • Very light weight – 215 pounds without controls
